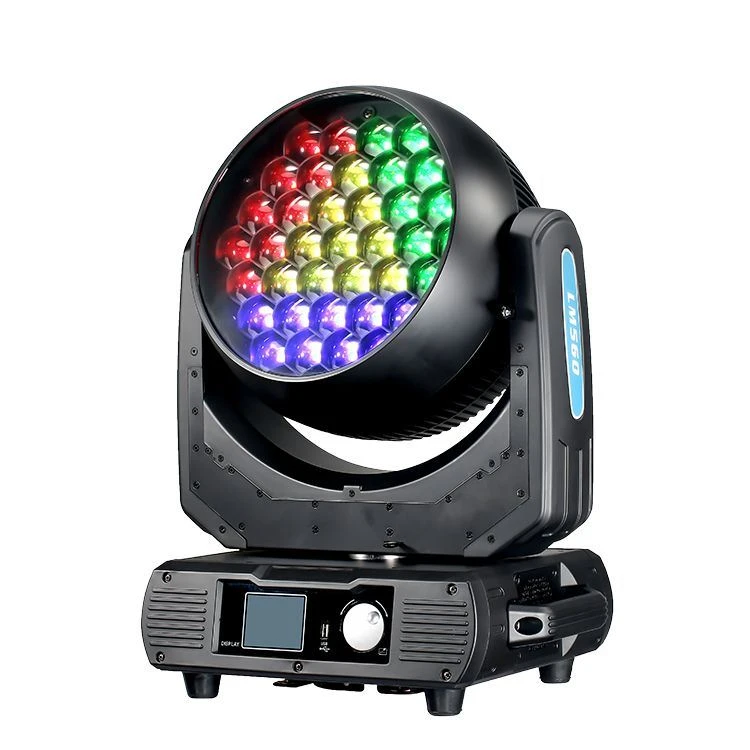

LM560
The LM560 zoom moving head wash light was launched in 2017. It uses 37*15W high brightness 4 in 1 LED light sources (Red+Green+Blue+White). The color mixing is very uniform, and the angle range is 8-38°, it can been install in different high roof. It is a high performance, long life, high brightness linear zoomable LED moving head wash light; it adopts a brand new ABS fireproof engineering plastic shell, uses a constant current circuit board and total power of 560W, dimming without flicker or jitter; the color conversion is smooth, and can be divided into 4 groups to control separately; circle control effect beautifully, use high transmittance French GAGGIONE lens and light guide rod. High density and high thermal conductivity aluminum alloy radiator, low wind noise.
Feature 1: with French Gaggione optical system.
Feature: 2: small size.
Feature 3: UTRAL brightness.
Feature 4: This wash zoom uses high-density heat-dissipating aluminum, which has good heat dissipation and ultra-low noise, which is unexpectedly favored by theaters.
Specification
Channels mode | 14/25/30CH; |
Lamp | 15W RGBW 4 in 1 LED,37 pcs; |
Power | AC 110-240V, 50/60Hz; |
Total power | 600W; |
Light Output Luminous | 10200 lm; |
10m illuminance (min/max) | 3140 Lux/1.7m, 203 Lux/0.57m; |
Lens | French lens, 8 degree; |
Display | Touch Screen; |
Zoom angel | 7.9-38°; |
Dimmer | 0-100% linear adjustment; |
Pan | 540°; 8 Bit / 16Bit; |
Tilt | 270°; 8 Bit / 16Bit; |

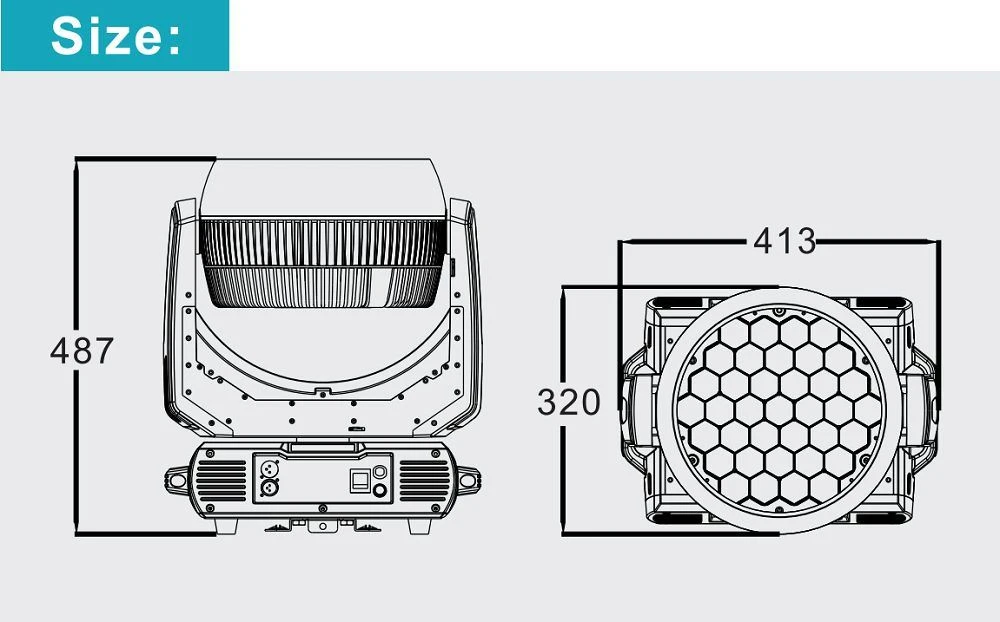

Product size | 413X320X487mm; |
Flycaes | 535X440X585mm (Not Include Wheel); |
Carton size | 535X440X585mm; |
N.W | 17KG; |
G.W | 20KG (carton box). |
